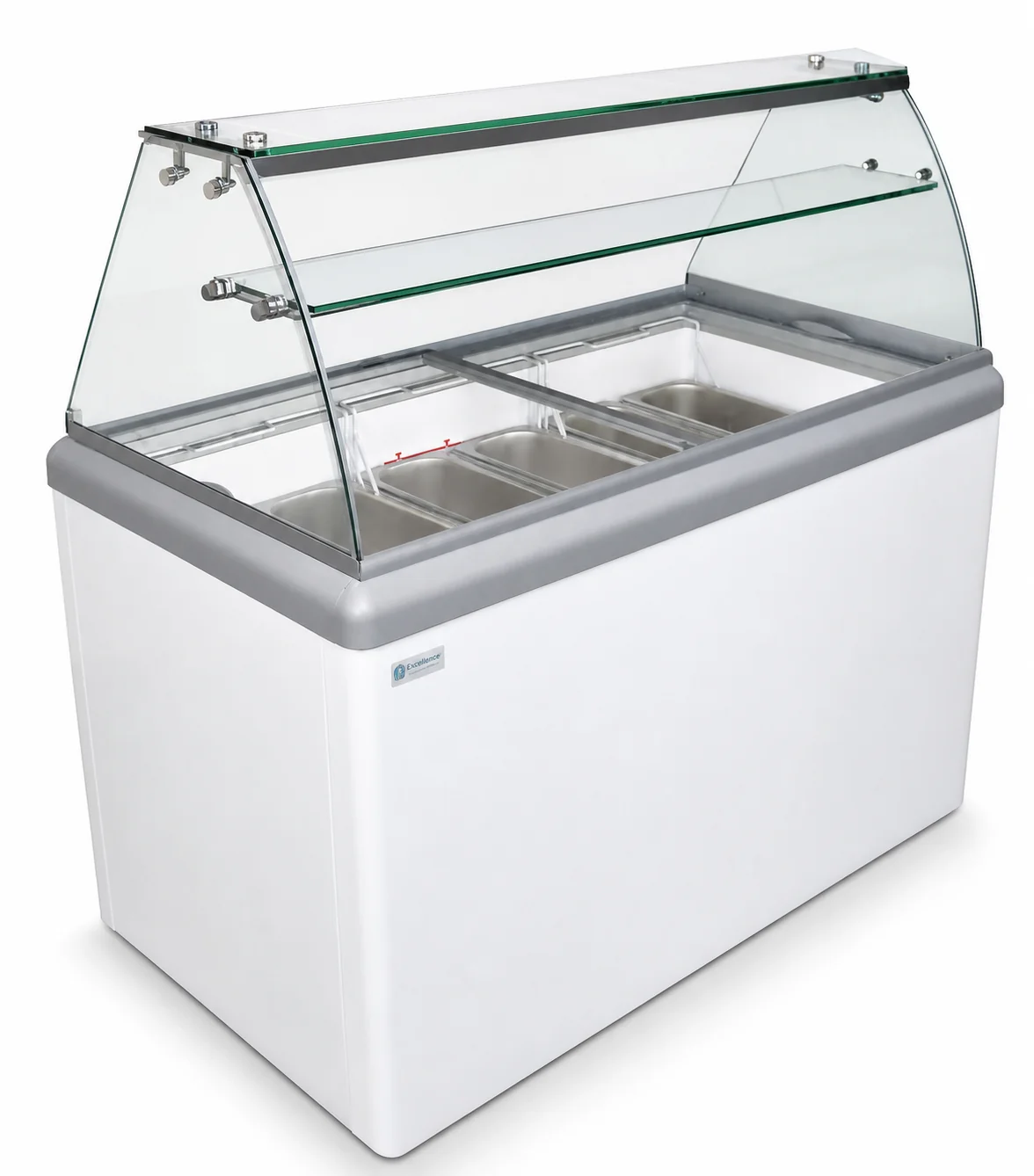

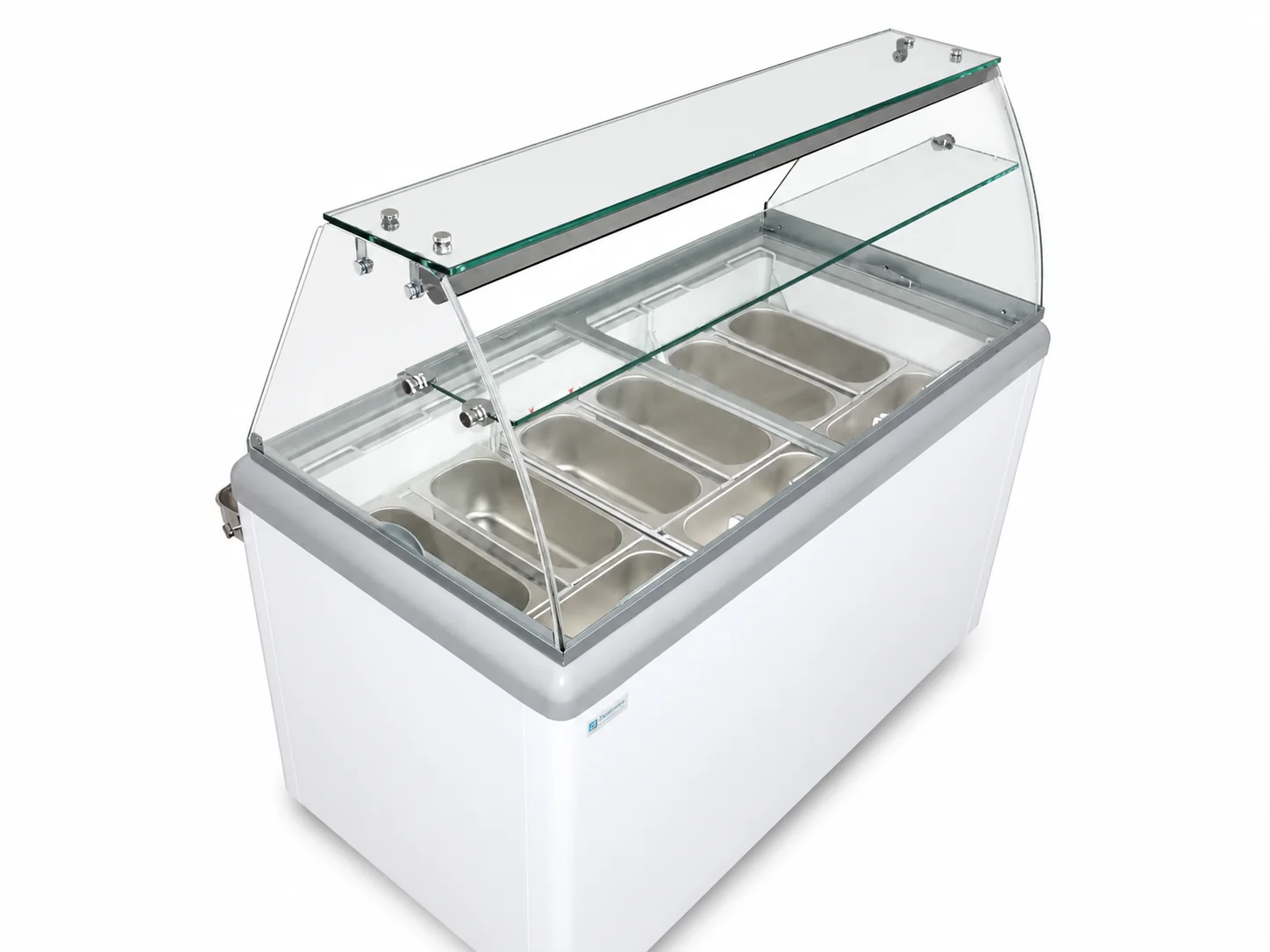

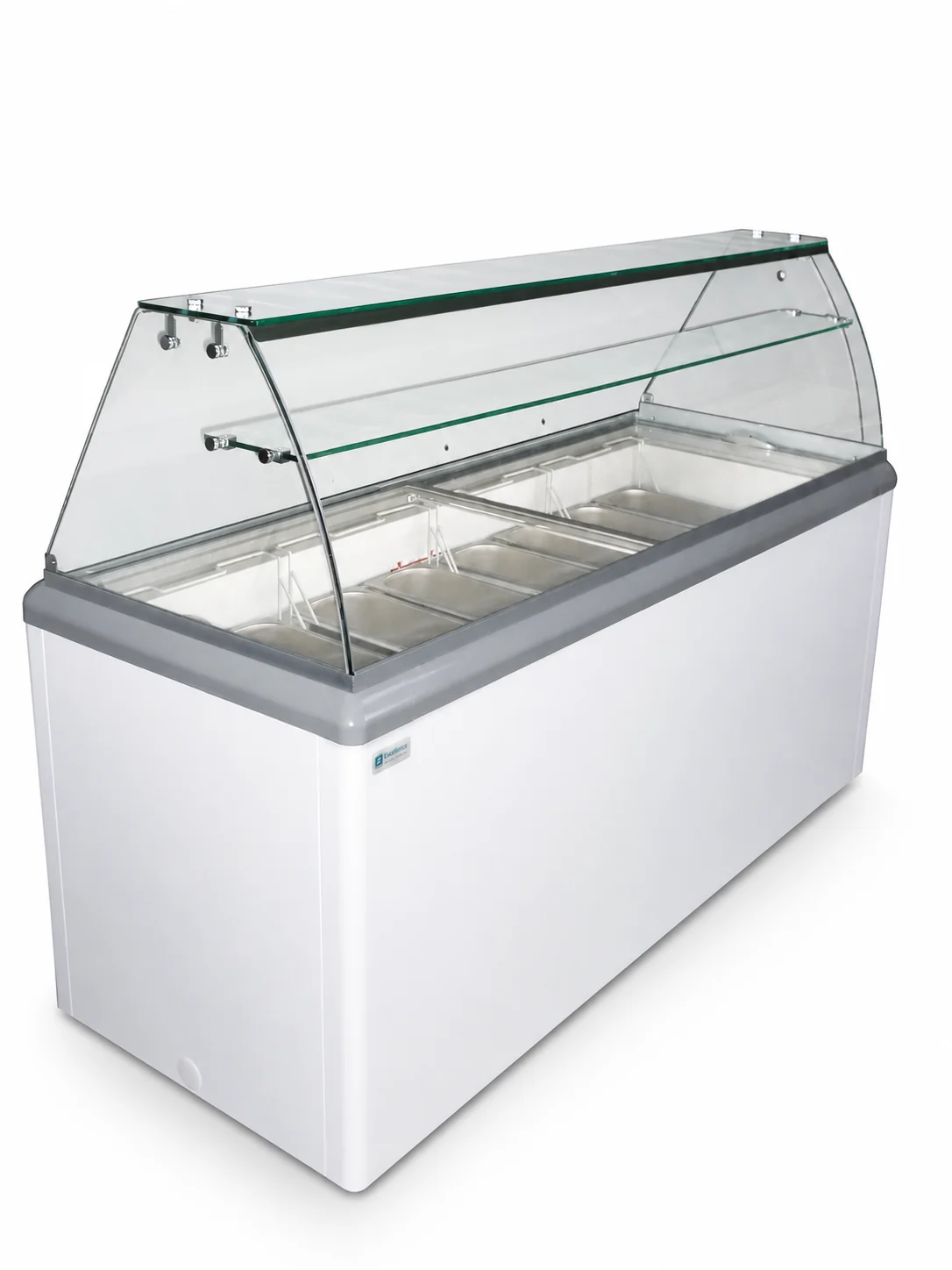

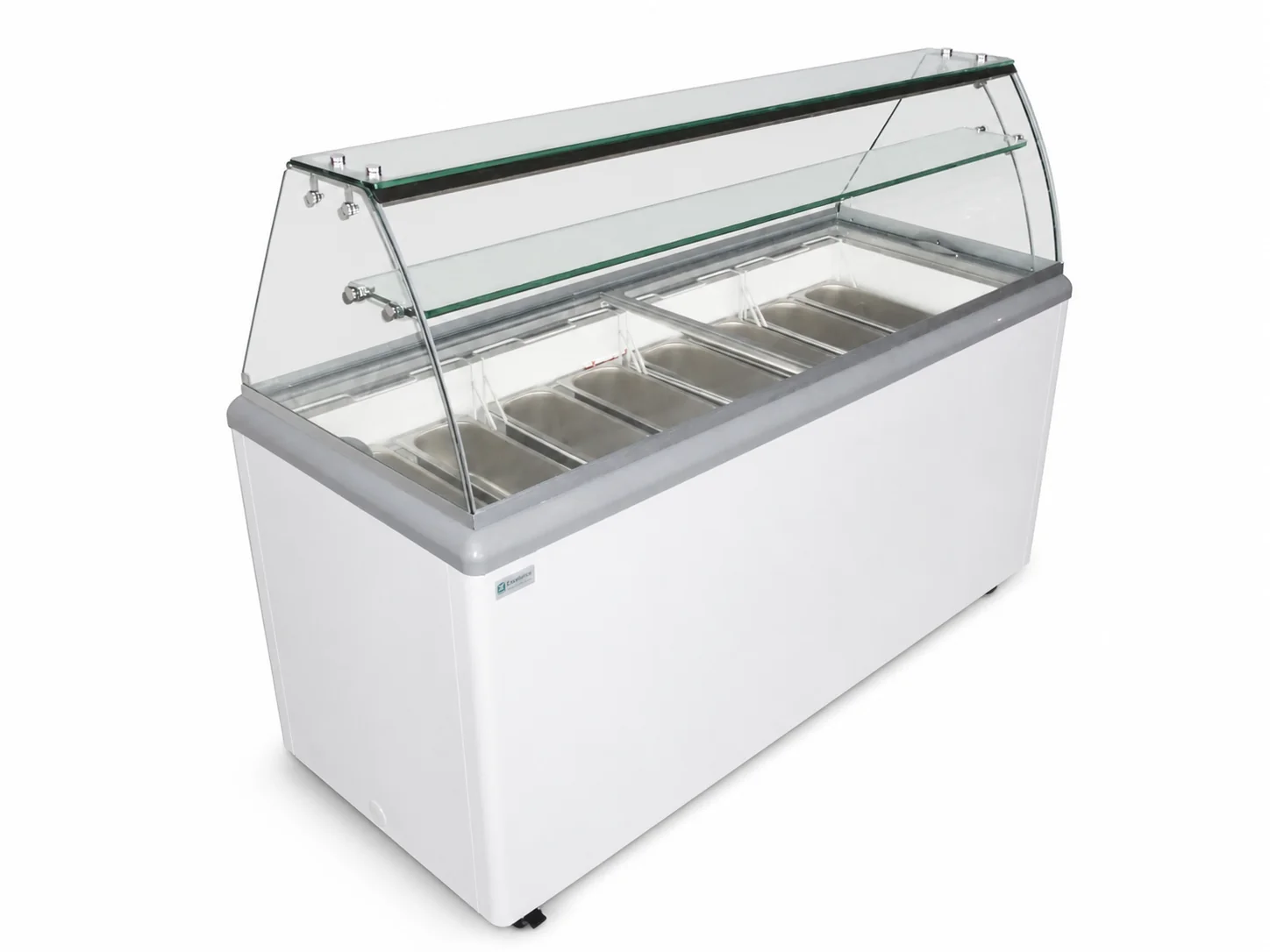

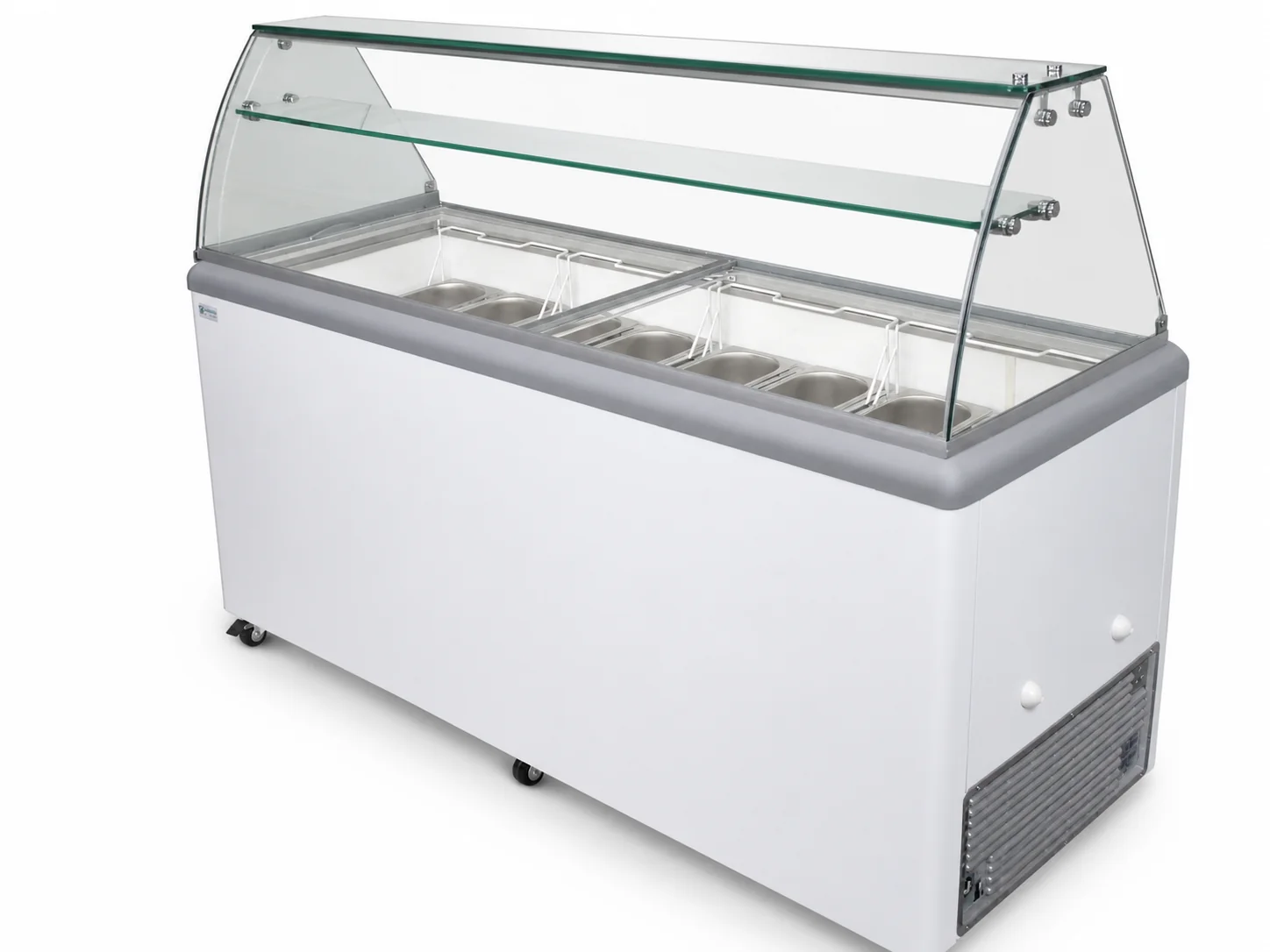

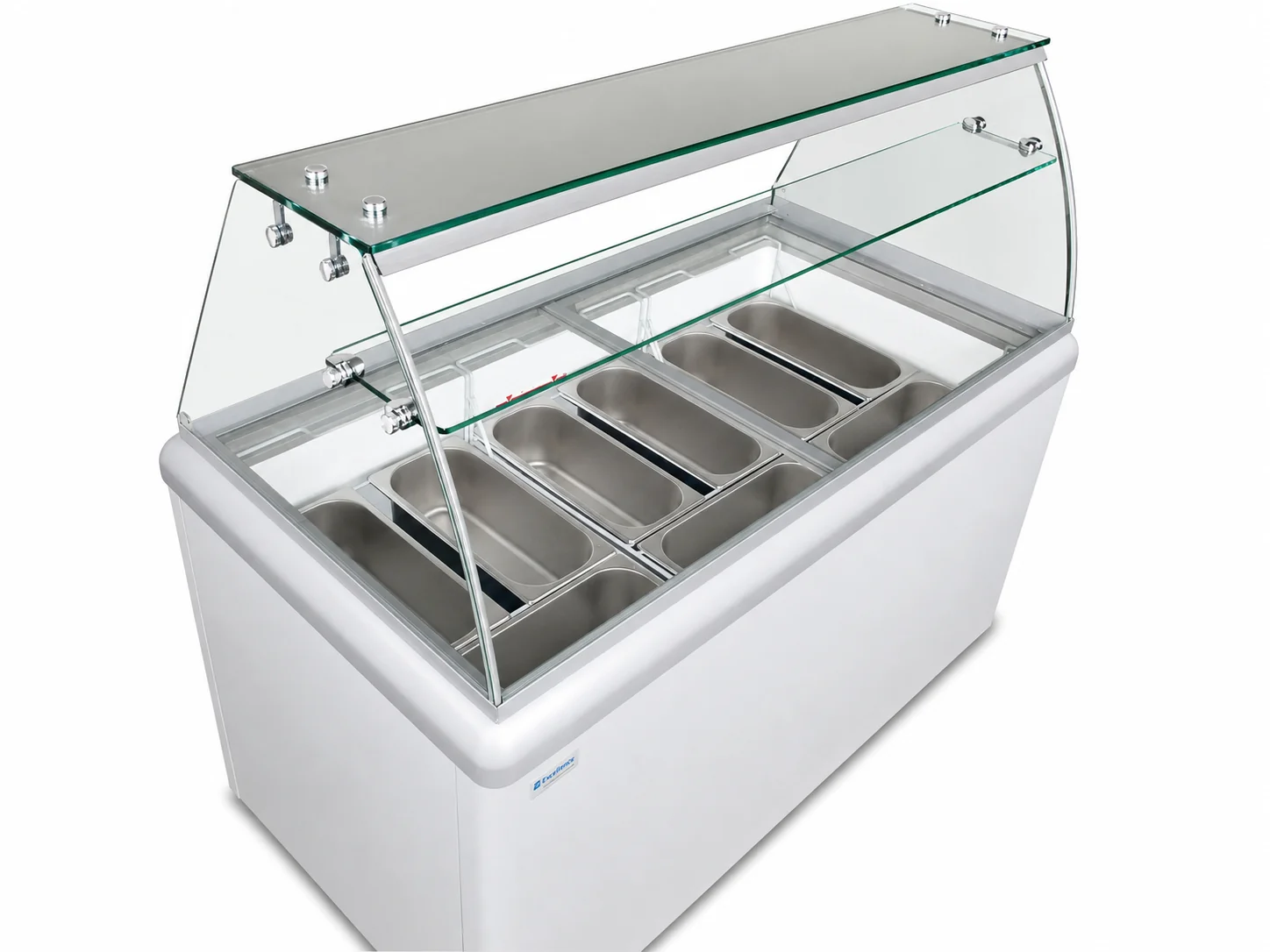

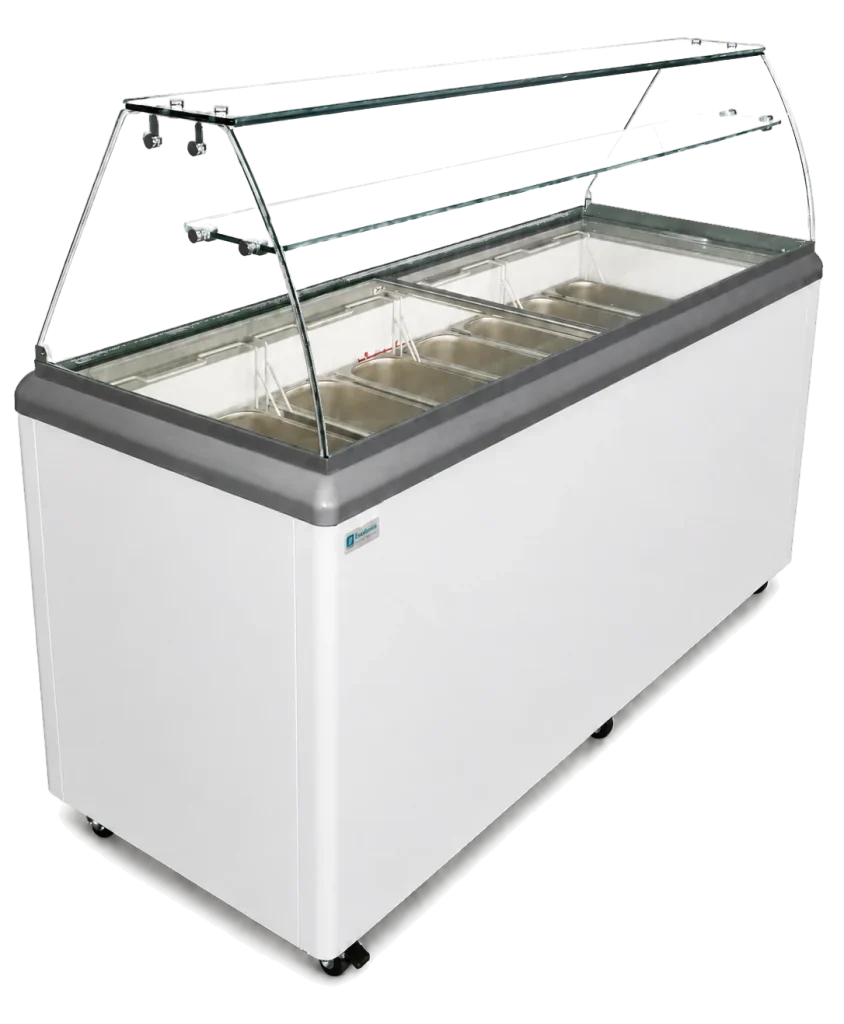

Gelato scooping cabinet in five sizes displaying 4 to 12 five-liter gelato pans, with mezzanine shelf and cold wall evaporator.
Key Features
- Single layer heat reflective lids
- LED interior lighting
- Cold wall evaporator
- Mezzanine shelf
- 5-liter gelato pans and holder
- 12.75-foot cord / 9.75-foot accessible cord
- Environmentally friendly R-290 refrigerant
- Temperature range of -5°F to +40°F
Advantages
- Designed for gelato scooping cabinet applications
- Standard stainless steel pans support gelato merchandising
- Cold wall system supports consistent product temperatures
Complies with 2017 DOE standards for commercial service over counter freezer and service over counter ice cream freezer
Documents
Documents shown in grey are coming soon.
Photos
Specifications
| Model | HBG-4HC | HBG-7HC | HBG-9HC | HBG-10HC | HBG-12HC |
|---|---|---|---|---|---|
| Cubic Feet | 6.4 | 11.1 | 13.8 | 16.5 | 20.0 |
| Approx. Weight (Net) | 164 lb (74 kg) | 218 lb (99 kg) | 268 lb (122 kg) | 298 lb (135 kg) | 346 lb (157 kg) |
| Approx. Weight (Shipping) | 193 lb (88 kg) | 262 lb (119 kg) | 305 lb (138 kg) | 334 lb (151 kg) | 394 lb (179 kg) |
| Running Amps | 1.3 | 1.4 | 2.0 | 2.0 | 4.1 |
| Compressor HP | 1/7 | 1/5 | 1/4 | 1/4 | 1/2 |
| Gelato Pans Displayed | 4 | 7 | 9 | 10 | 12 |
| Container Quantity | 99 | 67 | 56 | 49 | 42 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options
- Lock and key
- Dipper well
- Graphics

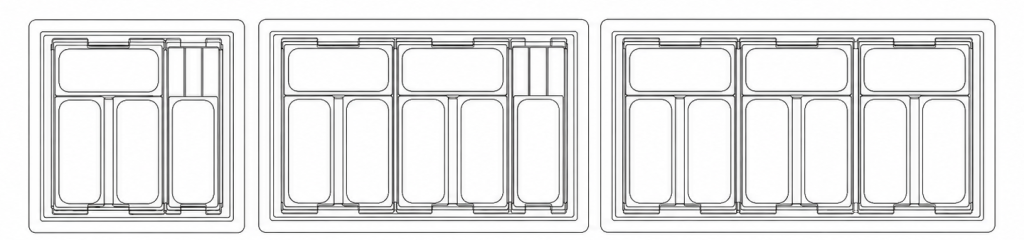

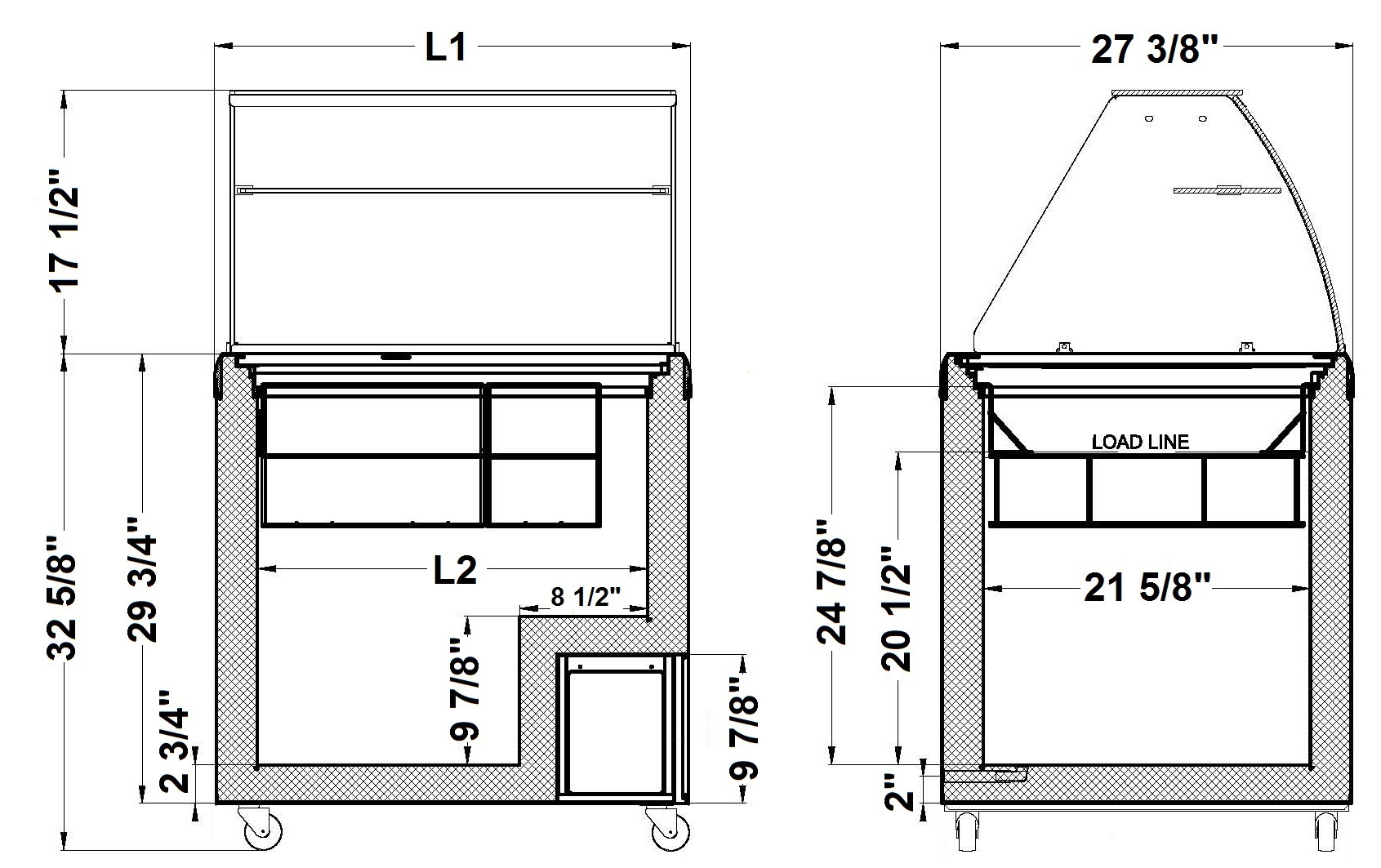

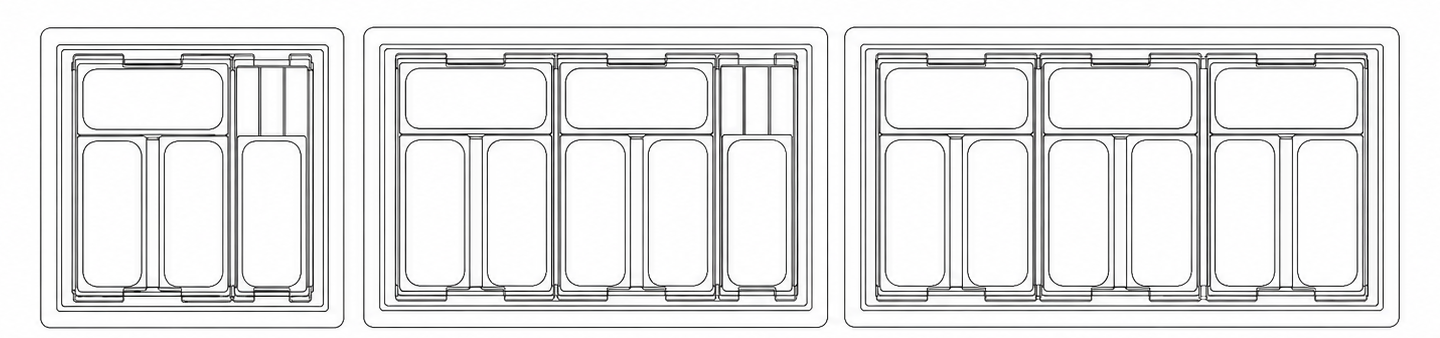

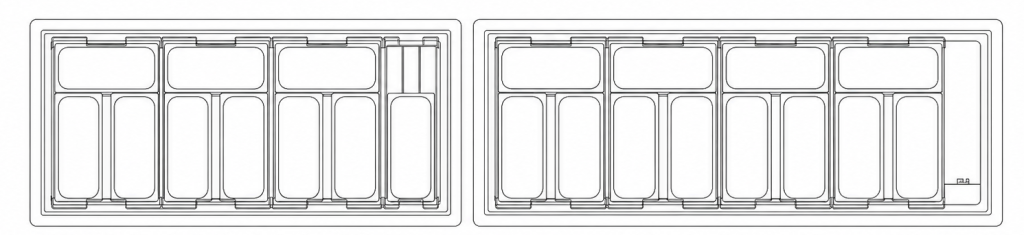

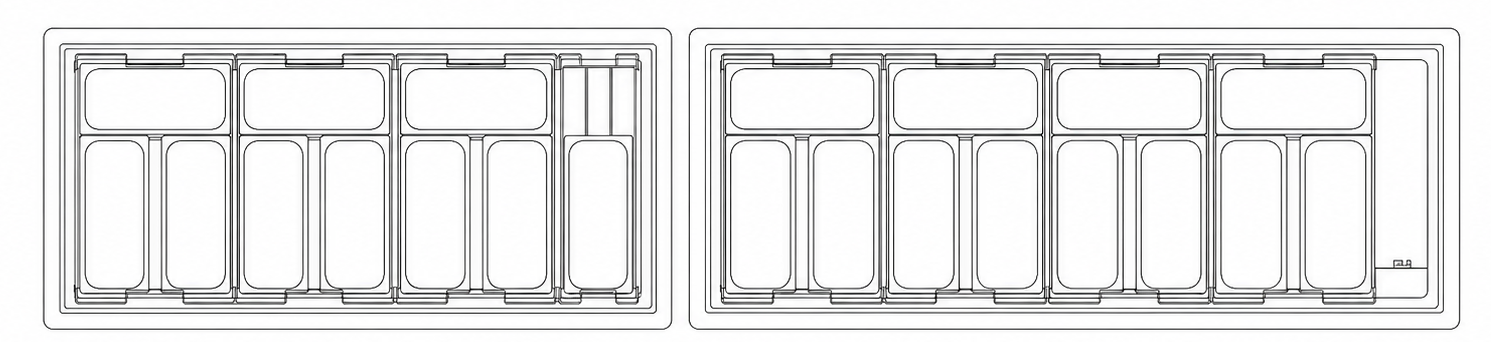

Dimensions
| Model | L1 | L2 |
|---|---|---|
| HBG-4HC | 28 1/2" | 22 7/8" |
| HBG-7HC | 43 1/2" | 37 7/8" |
| HBG-9HC | 51 3/4" | 46 1/8" |
| HBG-10HC | 59 1/2" | 53 7/8" |
| HBG-12HC | 70 5/8" | 65 1/8" |
