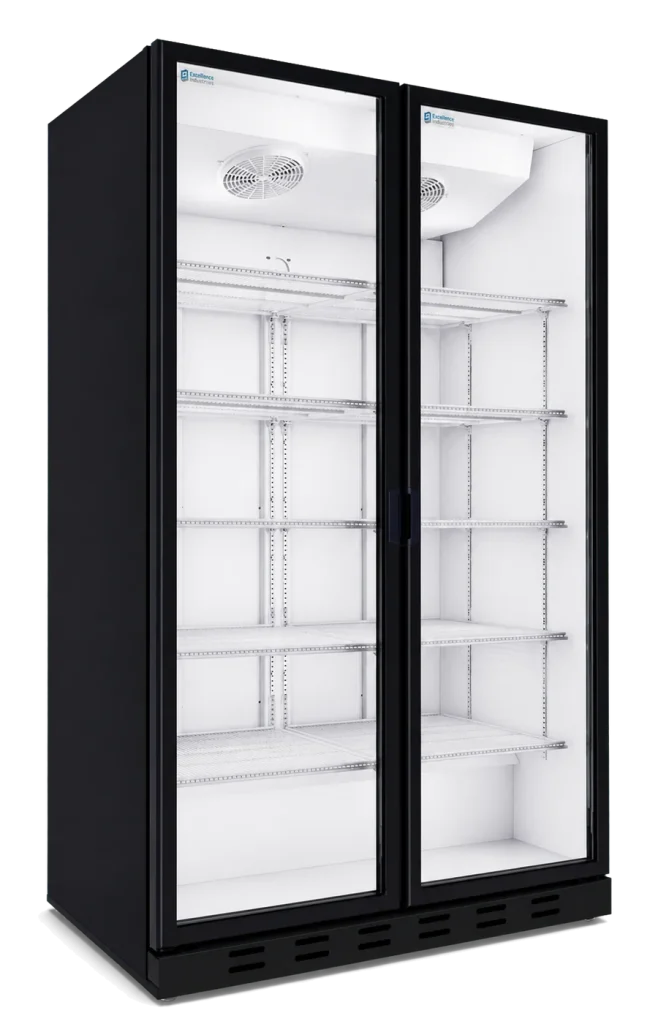

Full glass door cooler in five sizes from 9.5 to 50.3 cubic feet, with double pane glass doors and forced air refrigeration.
Key Features
- Double pane glass doors
- Forced air refrigeration
- Electronic controller
- Adjustable shelves
- High luminosity LED lighting
- 10-foot cord / 9-foot accessible cord
- Environmentally friendly hydrocarbon refrigerant
Advantages
- Self-closing doors help maintain cabinet temperature
- White interior helps labels stand out under LED lighting
- Full front glass for more merchandising space and a better overall look
Complies with 2017 DOE standards for commercial freezer and ice cream freezer
Documents
Documents shown in grey are coming soon.
Specifications
| Model | NG-11 | NG-13 | NG-27 | NG-44 | NG-50 |
|---|---|---|---|---|---|
| Cubic Feet | 9.5 | 11.7 | 21.9 | 43.3 | 50.3 |
| Approx. Weight (Net) | 185 lb (84 kg) | 198 lb (90 kg) | 291 lb (132 kg) | 415 lb (188 kg) | 466 lb (211 kg) |
| Approx. Weight (Shipping) | 199 lb (90 kg) | 212 lb (96 kg) | 311 lb (141 kg) | 430 lb (195 kg) | 481 lb (218 kg) |
| Running Amps | 3 | 3 | 3.5 | 6 | 7 |
| Compressor HP | 1/8 | 1/8 | 1/3 | 1/3 | 1/2 |
| Refrigerant | R-600a | R-600a | R-290 | R-290 | R-290 |
| Temperature | +32°F to +45°F | +32°F to +45°F | +36°F to +39°F | +32°F to +45°F | +34°F to +43°F |
| Capacity of 20 oz PET | 140 | 182 | 387 | 602 | 688 |
| Container Quantity | 69 | 69 | 57 | 24 | 22 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options
- Castors
- Door lock
- Custom graphics

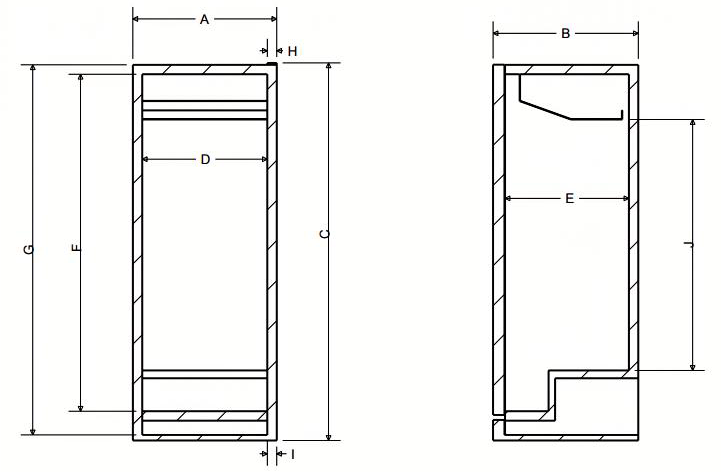

Dimensions
| Model | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| NG-11 | 24.9" | 22.8" | 54.3" | 20.9" | 18.9" | 45.9" | 52.9" | 2.0" | 1.5" | 32" |
| NG-13 | 24.9" | 22.8" | 23.7" | 20.9" | 18.9" | 54.6" | 61.5" | 2.0" | 1.5" | 42" |
| NG-27 | 30" | 30.1" | 78.6" | 26.1" | 25.8" | 70.3" | 77.2" | 2.0" | 1.5" | 54.1" |
| NG-44 | 47.1" | 29.8" | 79.3" | 43.2" | 26.1" | 70.9" | 77.8" | 2.0" | 1.5" | 55" |
| NG-50 | 54.1" | 29.8" | 79.3" | 50.2" | 26.1" | 70.9" | 77.8" | 2.0" | 1.5" | 55" |
