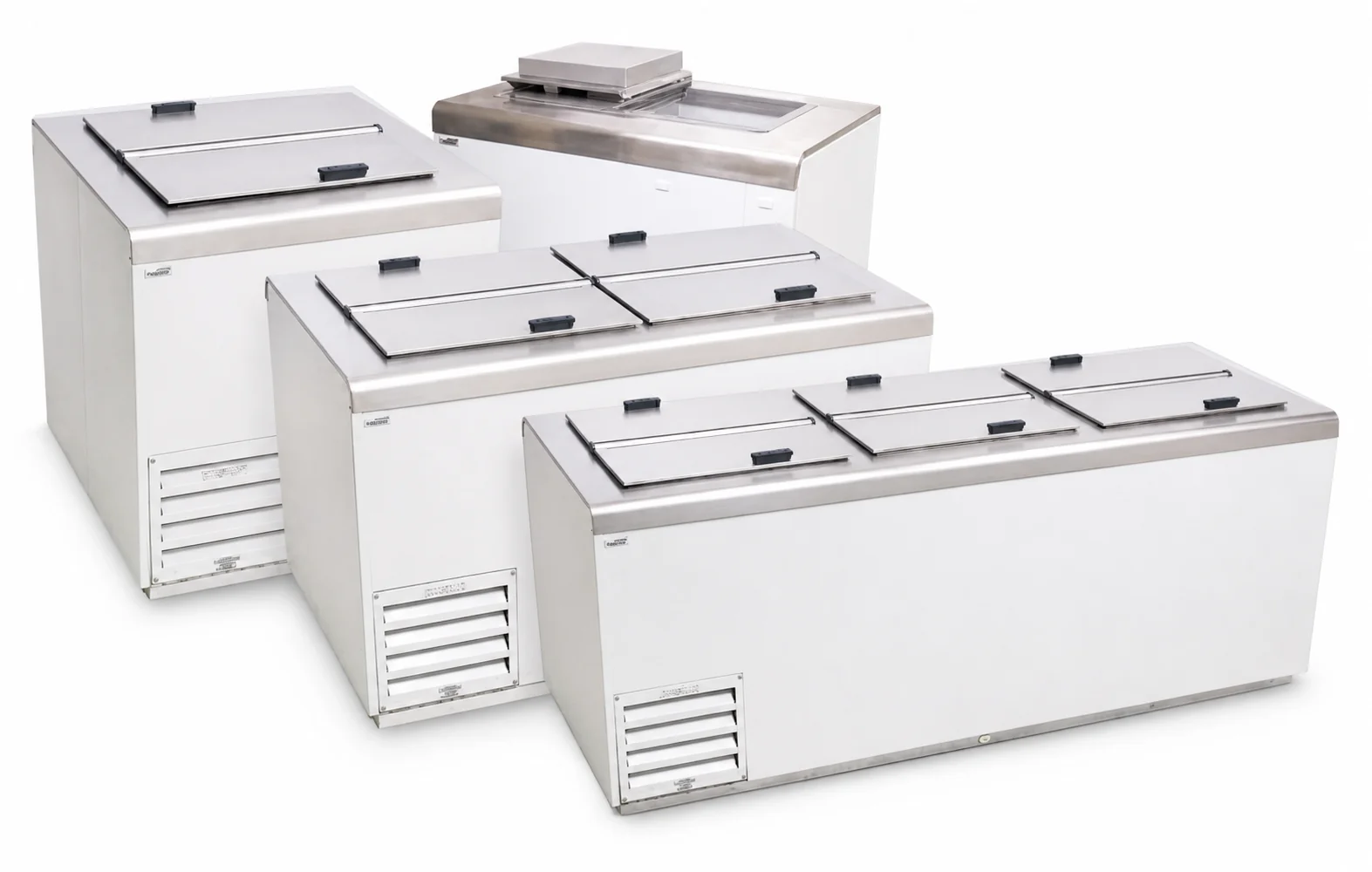

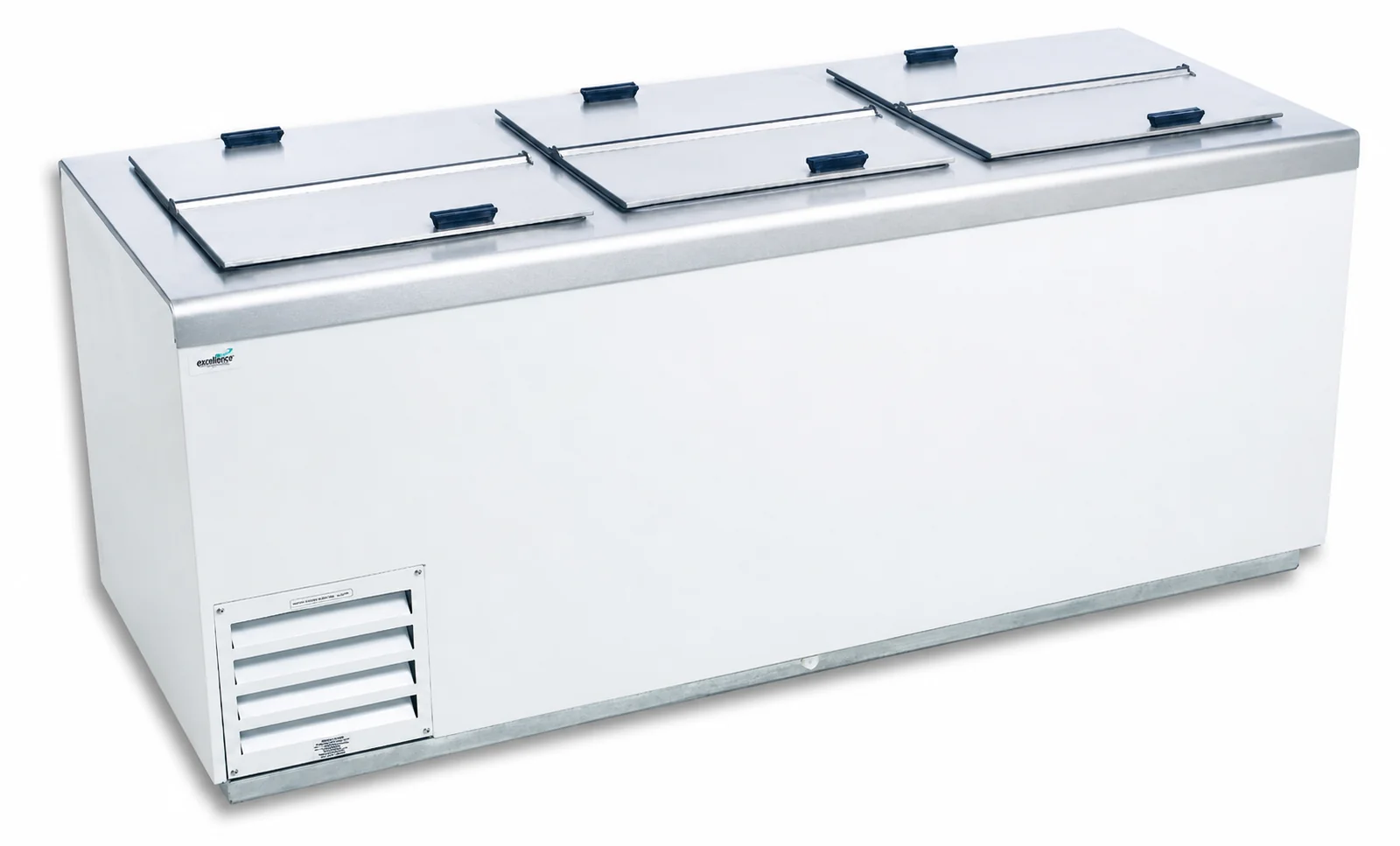

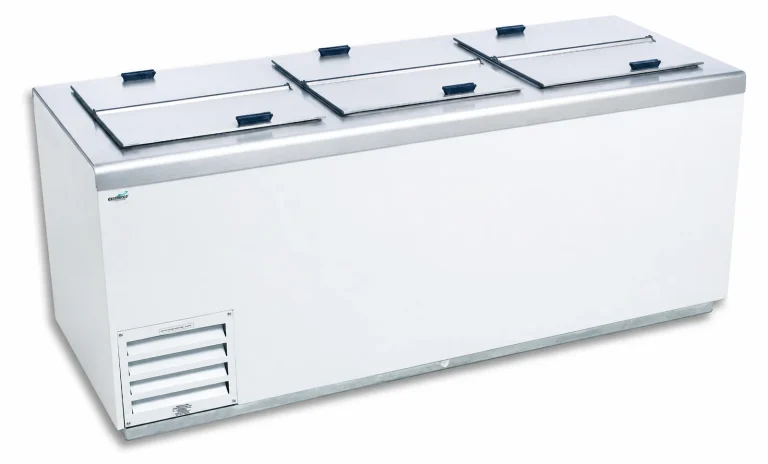

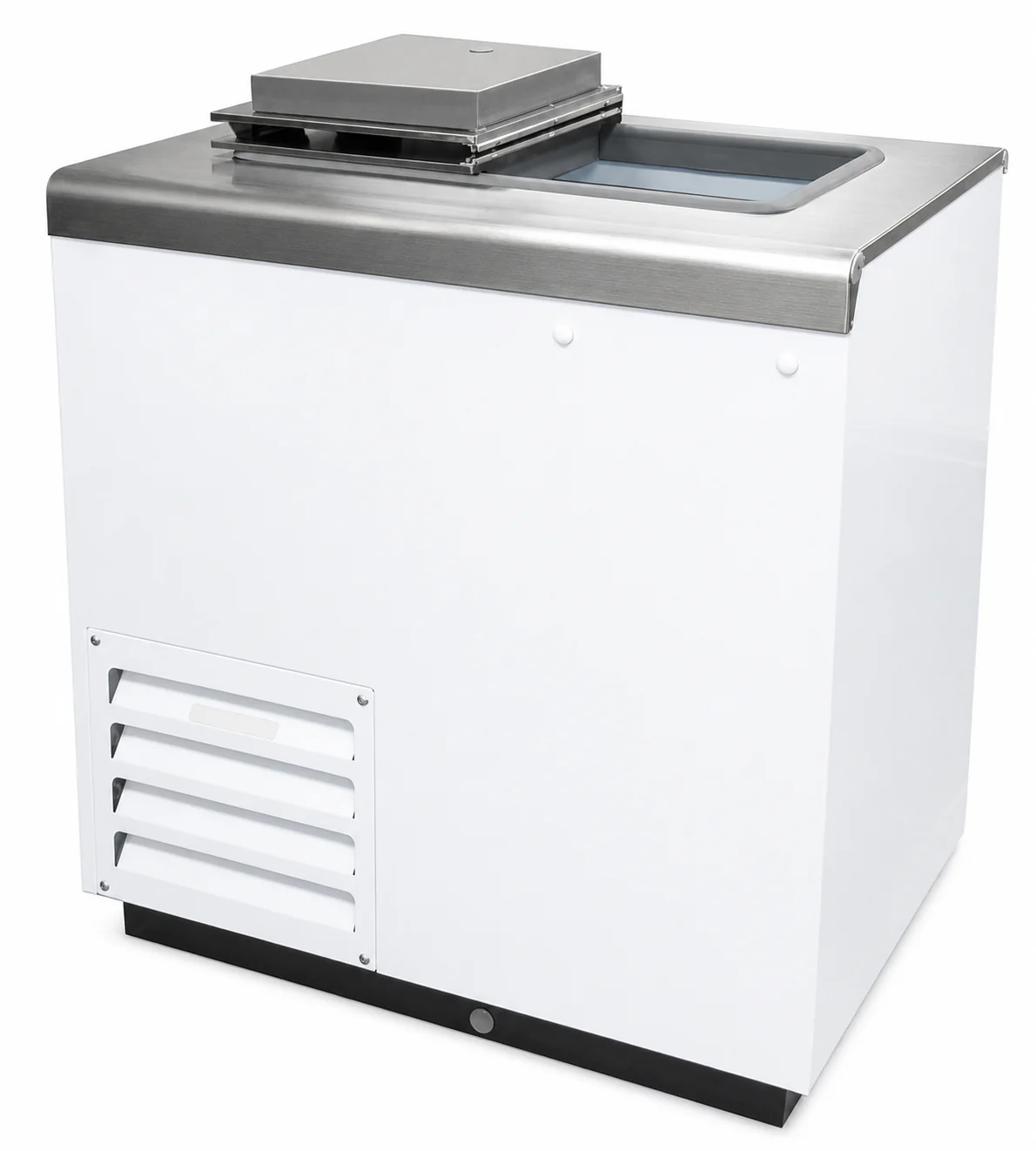

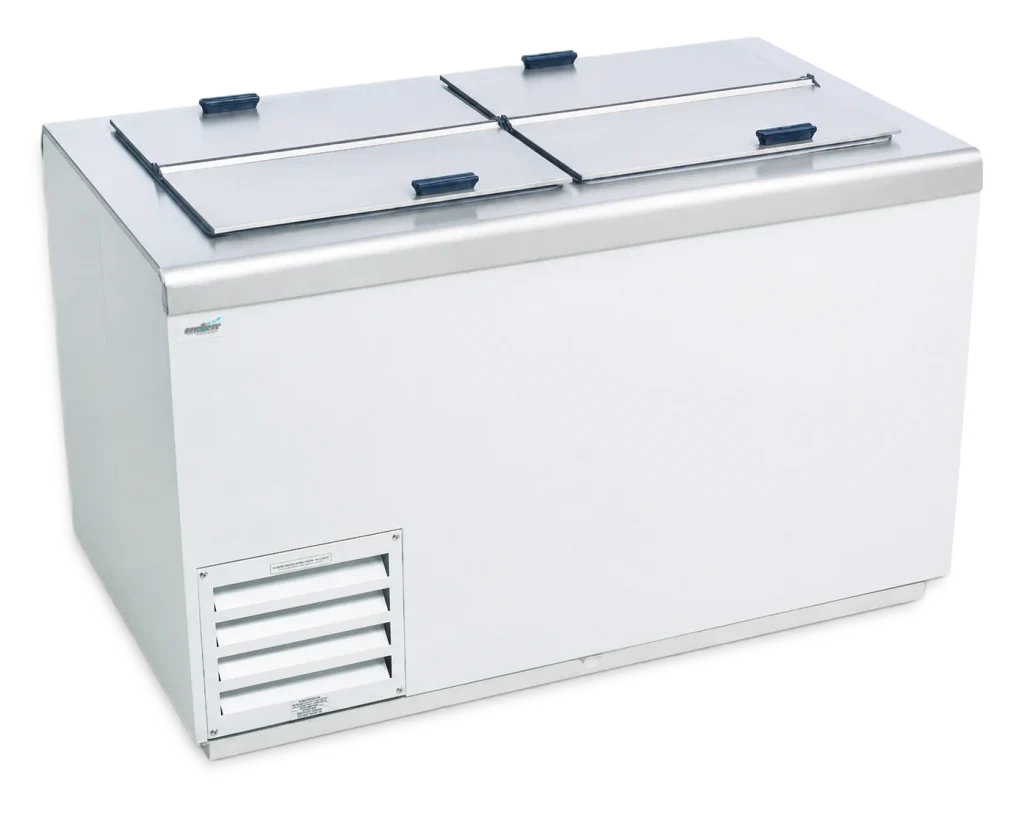

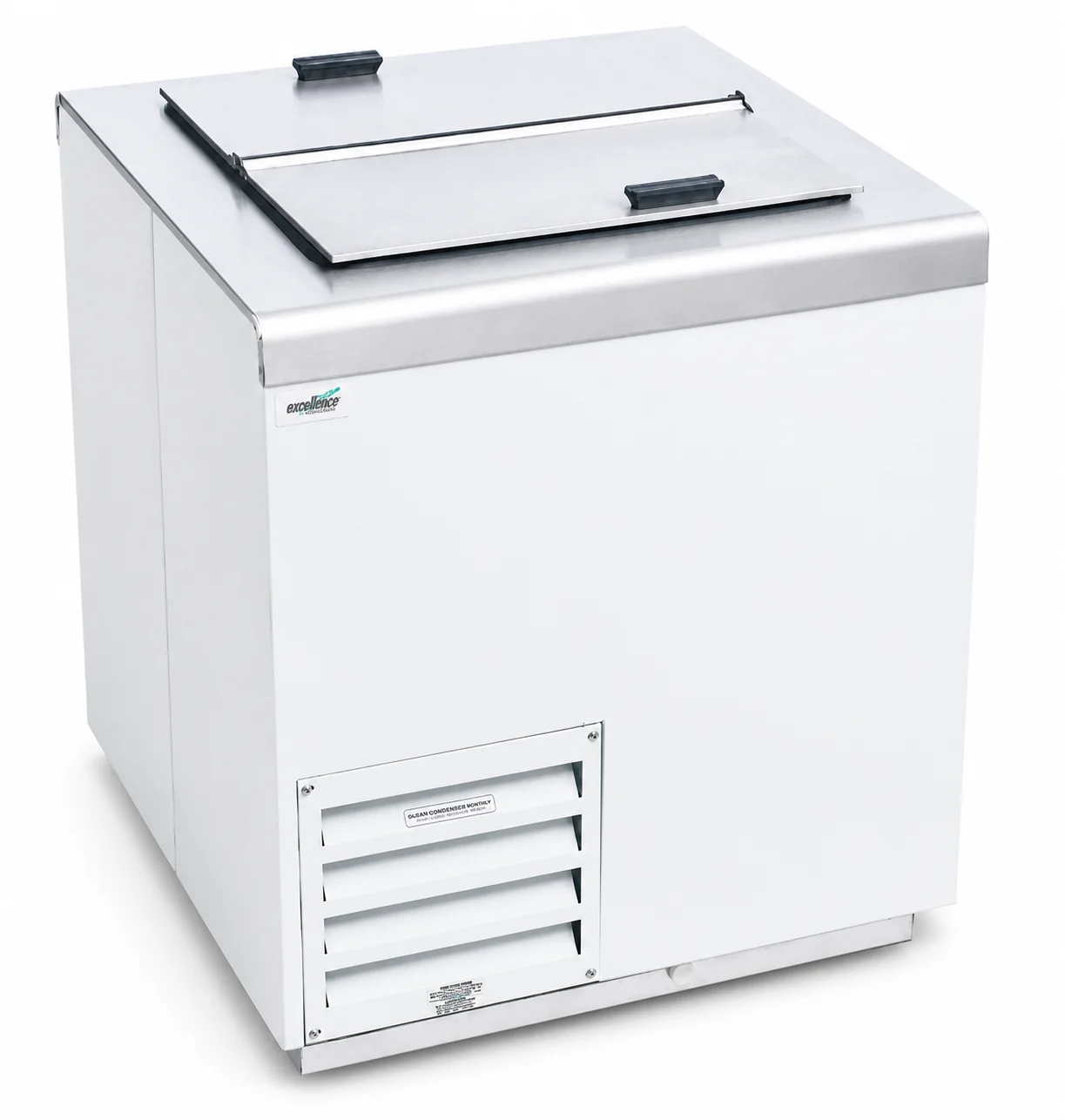

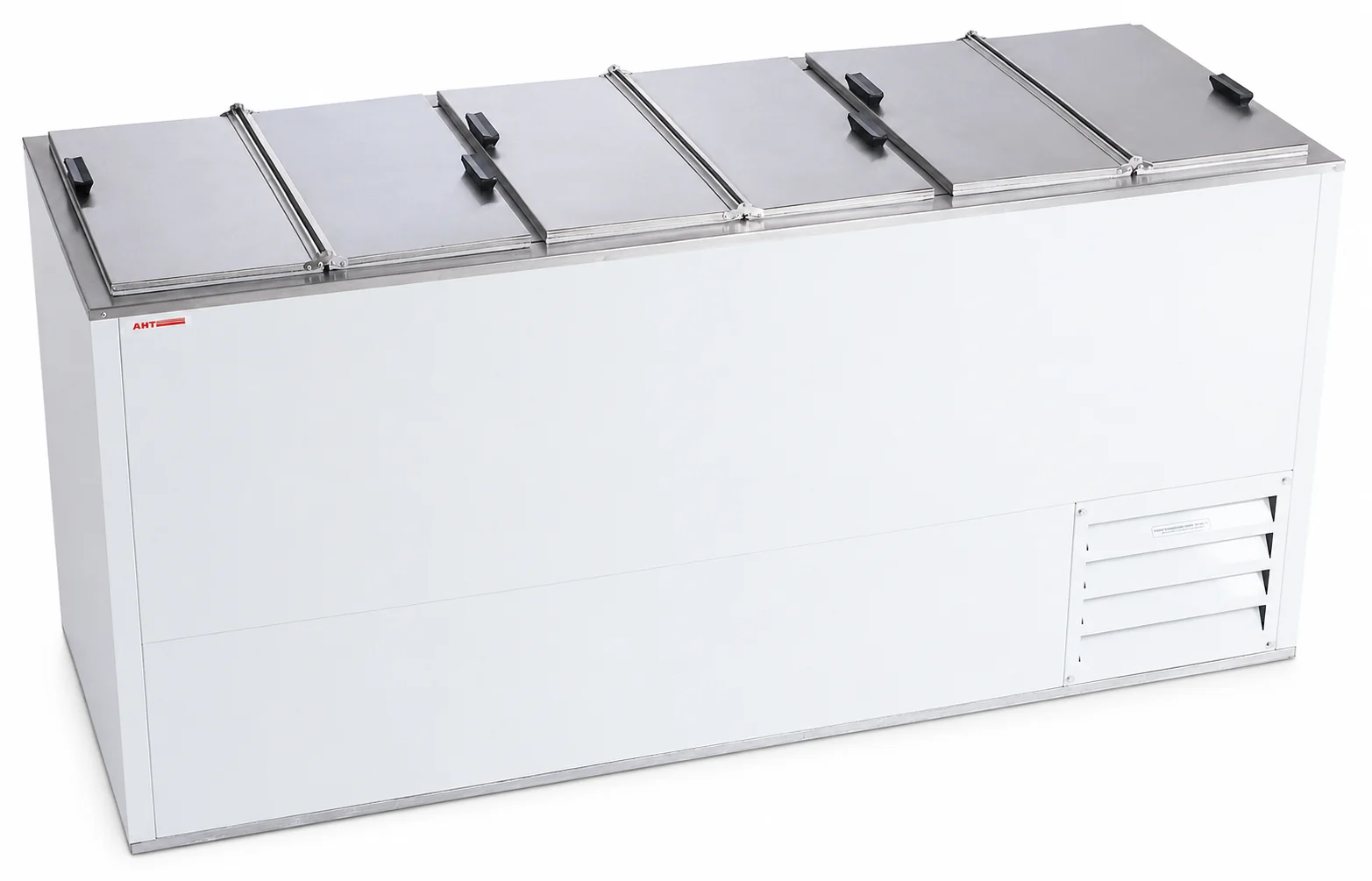

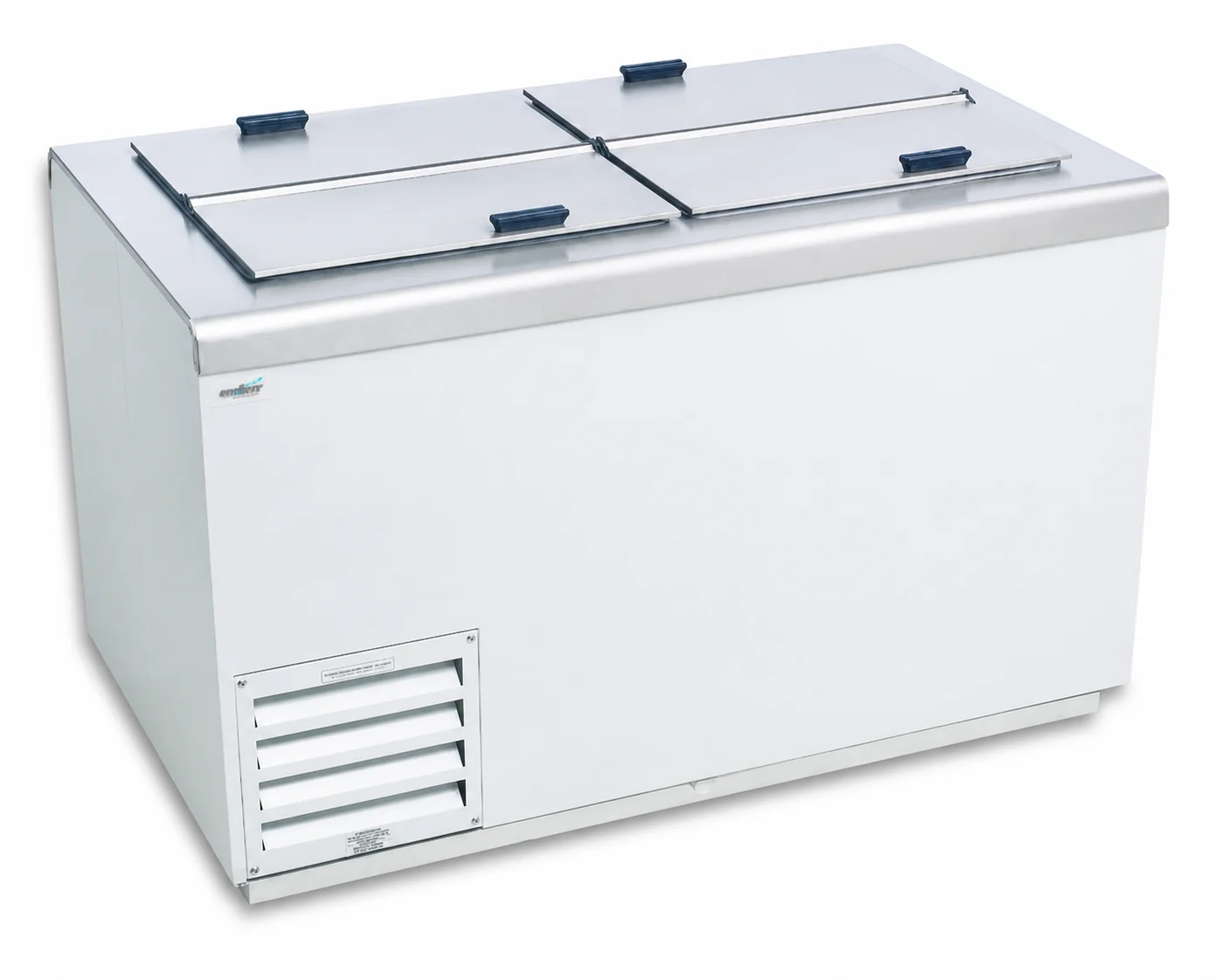

Heavy duty cold wall storage freezer with stainless steel top and lids in four sizes from 5 to 23 cubic feet, -14°F to +6°F.
Key Features
- Heavy gauge high grade steel interior/exterior
- Cold wall refrigeration
- Bottom drain for easy defrost
- Heavy-duty stainless-steel top and lids
- 6-foot cord
- Environmentally friendly R-290 refrigerant
- Temperature range of -14°F to +6°F
Advantages
- High-capacity storage
- Low maintenance condenser and cold wall refrigeration system provides low maintenance and operating costs
Complies with 2017 DOE standards for commercial ice cream freezer with solid doors
Documents
Documents shown in grey are coming soon.
Photos
Specifications
| Model | HFF-2HC | HFF-4HC | HFF-8HC | HFF-12HC |
|---|---|---|---|---|
| Cubic Feet | 5 | 6.6 | 14.3 | 23 |
| Approx. Weight (Net) | 116 lb (53 kg) | 168 lb (76 kg) | 248 lb (113 kg) | 350 lb (159 kg) |
| Approx. Weight (Shipping) | 149 lb (68 kg) | 179 lb (81 kg) | 246 lb (112 kg) | 353 lb (160 kg) |
| Running Amps | 2.5 | 3.3 | 6.7 | 6.8 |
| Compressor HP | 1/5 | 1/5 | 1/3 | 1/3 |
| 3 Gal. Can Capacity / Facing | 4/3 | 7/5 | 19/11 | 33/18 |
| Container Quantity | 110 | 56 | 44 | 28 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options
- Graphics
- Locking bar
- Casters
- Dipper well

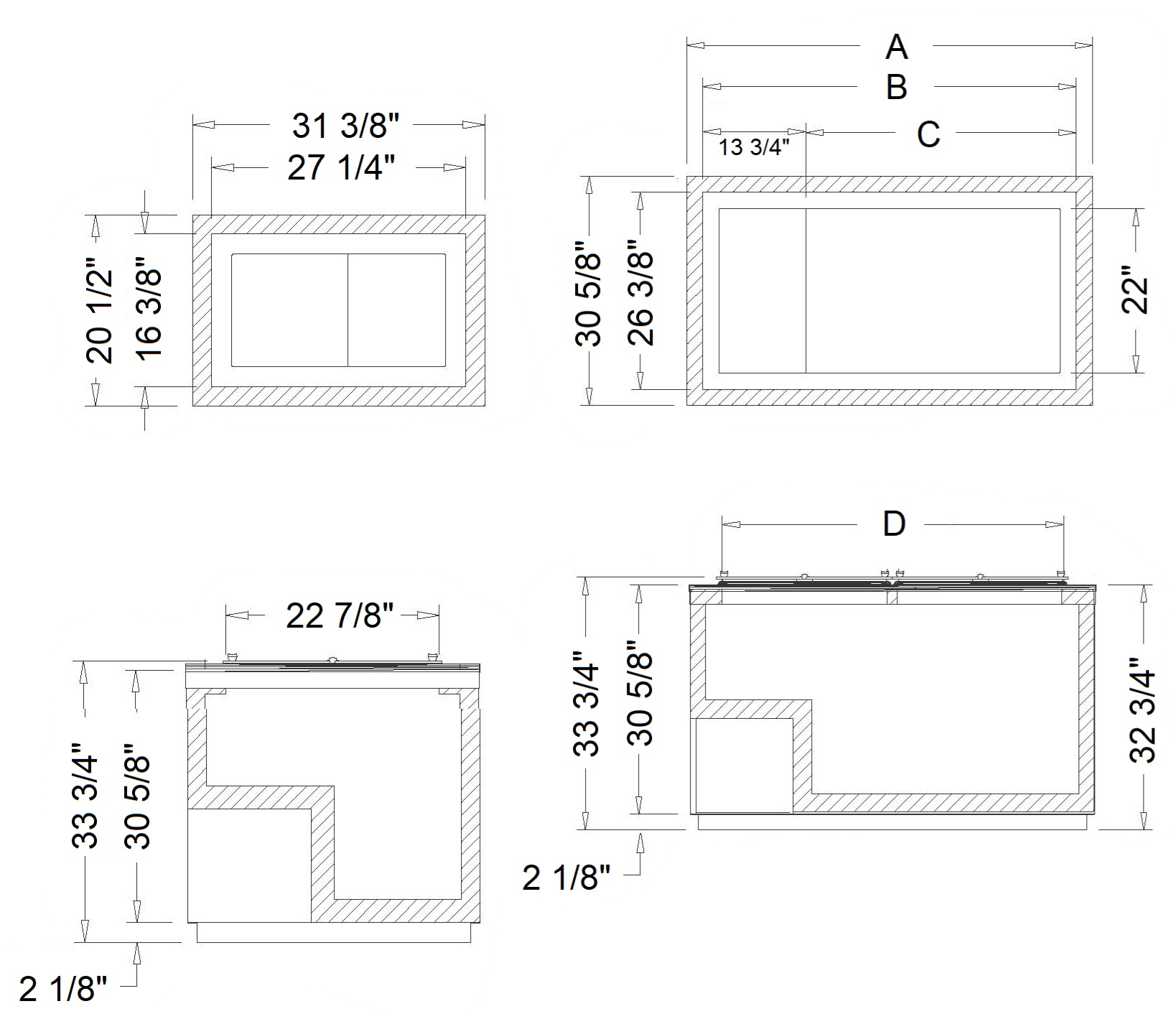

Dimensions
| Model | A | B | C | D |
|---|---|---|---|---|
| HFF-4HC | 30 3/4" | 26 3/8" | 12 5/8" | 22" |
| HFF-8HC | 54 1/4" | 49 7/8" | 36 1/8" | 45 1/2" |
| HFF-12HC | 80 3/4" | 76 3/8" | 62 5/8" | 72" |
