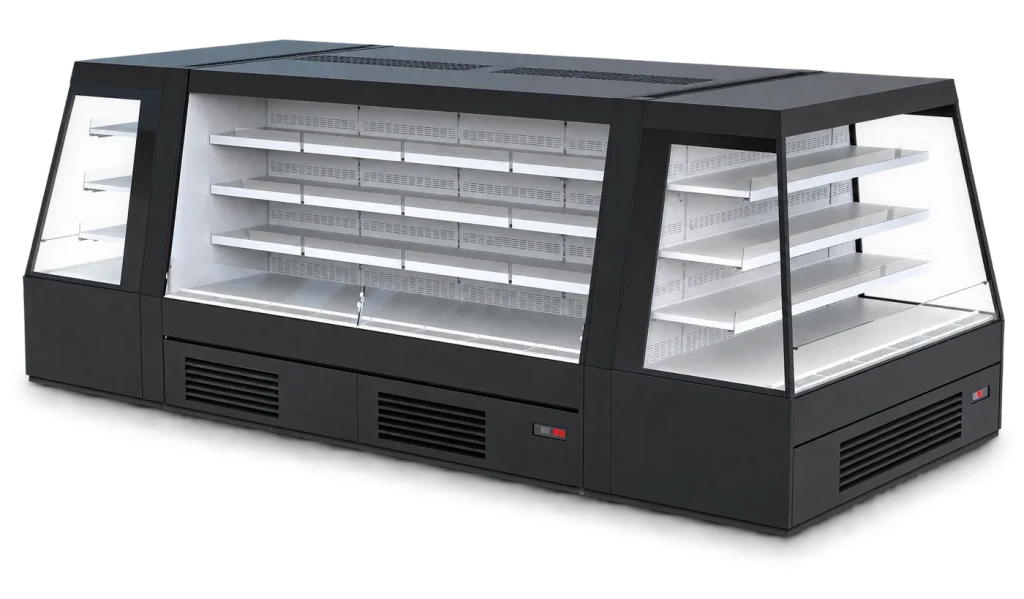

Self-contained semi-vertical multideck in 4' to 12' lengths (26.7 to 80.25 cubic feet), holding +32°F to +35.6°F.
Key Features
- Electronic controller with temperature indicator
- Zinc plated steel, powder coated in black
- 3 rows of adjustable shelves, price holders and lights on each shelf
- 9.75-foot cord
- Environmentally friendly R-290 refrigerant
- Temperature range of +32°F to +35.6°F
Advantages
- Can be used as inline or combined as an island
- Self-contained so units can be easily moved
- Excellent lighting to enhance product display
Complies with 2017 DOE standards for
Documents
Documents shown in grey are coming soon.
Specifications
| Model | TDAL-1219 | TDAL-1828 | TDAL-2438 | TDAL-3048 | TDAL-3658 | TDAL-1870 |
|---|---|---|---|---|---|---|
| Cubic Feet | 26.7 | 40.1 | 53.49 | 66.9 | 80.25 | 41.1 |
| Length | 4' | 6' | 8' | 10' | 12' | 6' |
| Approx. Weight (Net) | 595 lb (270 kg) | 772 lb (380 kg) | 970 lb (440 kg) | 882 lb (400 kg) | 1058 lb (480 kg) | 838 lb (380 kg) |
| Approx. Weight (Shipping) | 683 lb (310 kg) | 881 lb (400 kg) | 1080 lb (490 kg) | 970 lb (440 kg) | 1168 lb (530 kg) | 948 lb (430 kg) |
| Running Amps | 5.2 | 4.9 | 7.6 | 9.6 | 9.7 | 9.1 |
| Compressor HP | 1 3/8 | 1 1/4 | 2 | 2 1/2 | 2 1/2 | 2 |
| Container Quantity | TBD | 12/24 | 8/16 | 6/12 | 6/12 | 12/24 |
Electrical: NEMA 6-15P · 208 / 60 / 1
Available Options
- Undershelf lighting
- Plexiglass divider
- Sidewalls (in the straight module – a full side with a mirror, in the end case – a full, glazed side)

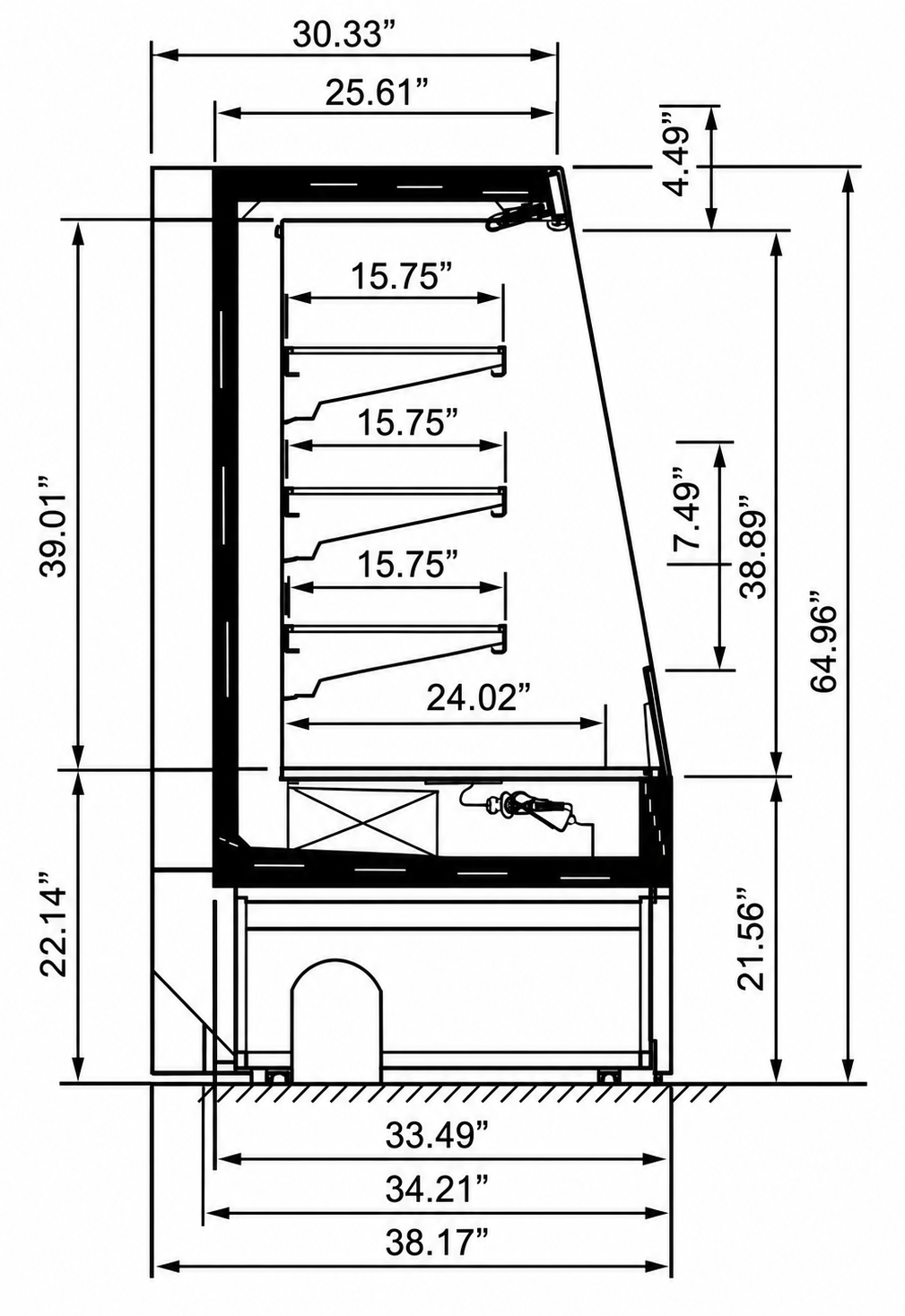

Dimensions
